Rod Ends and Spherical Plain Bearings – Built for the Trade
Rod ends and spherical plain bearings take on the jobs where standard bearings just won’t cut it. Designed for oscillating movement, high misalignment, or extreme loads, these components are the hinge points of heavy machinery, actuators, and mechanical linkages.
They can swivel, pivot, and rotate under pressure — absorbing movement and loads that would destroy a rigid connection. But they only work well when properly specced.

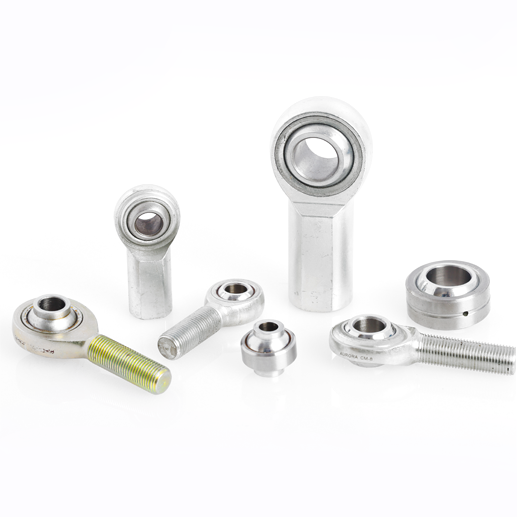

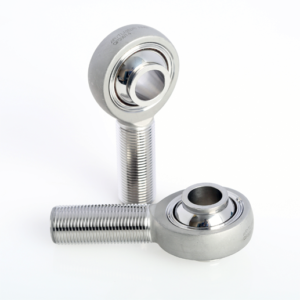

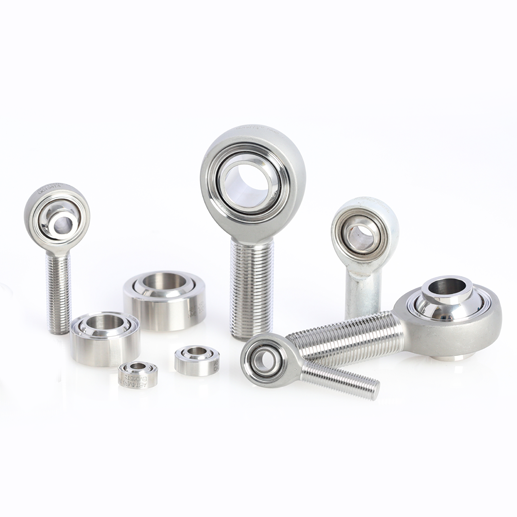

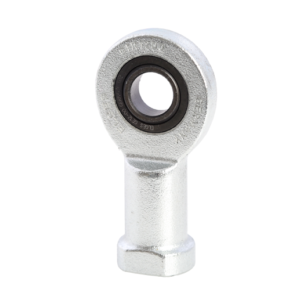

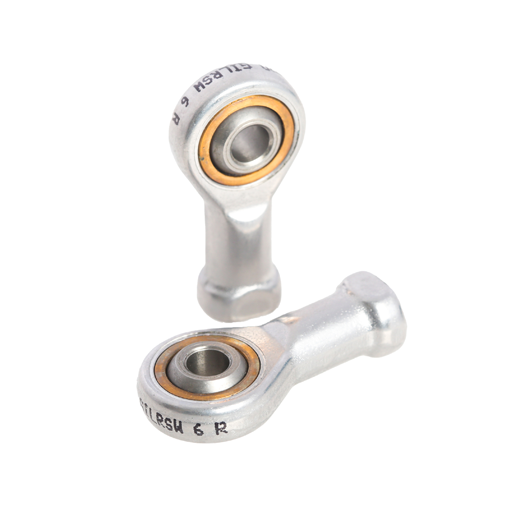

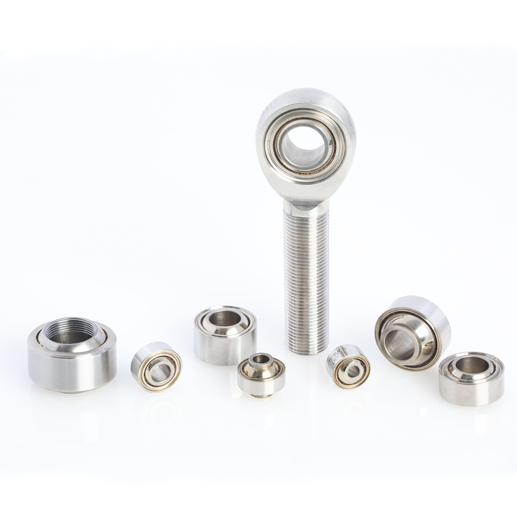

Godiva Bearings stocks a wide range of metric and imperial rod ends and spherical plain bearings — in male and female configurations, with or without grease nipples. Always trade-only. Always ready.
What Are Rod Ends and Spherical Plain Bearings?

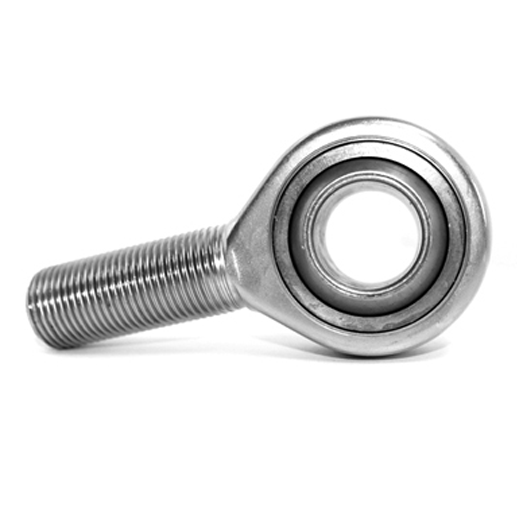

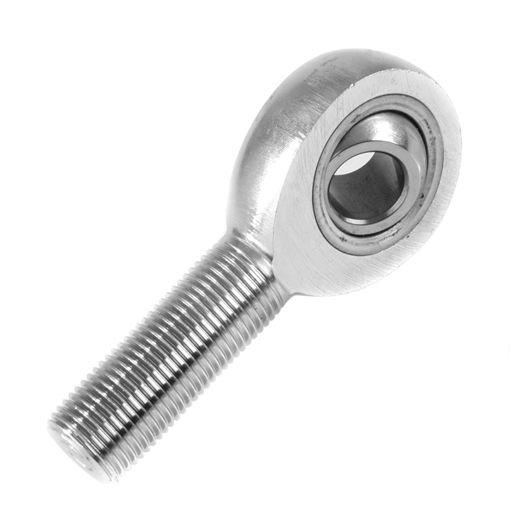

Rod ends (also known as rose joints) are mechanical articulating joints that combine a spherical plain bearing with a threaded shaft. They allow misalignment between connected parts while transmitting motion and load.

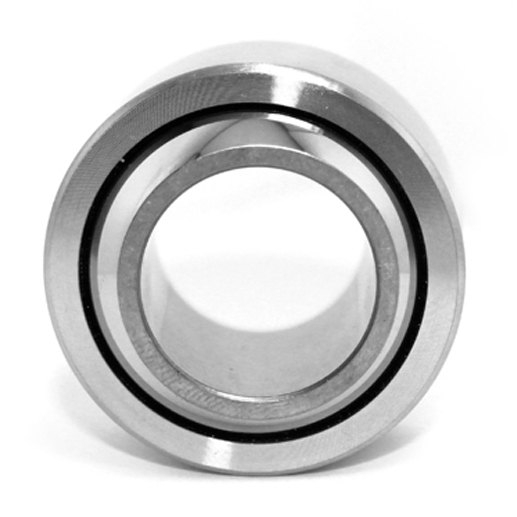

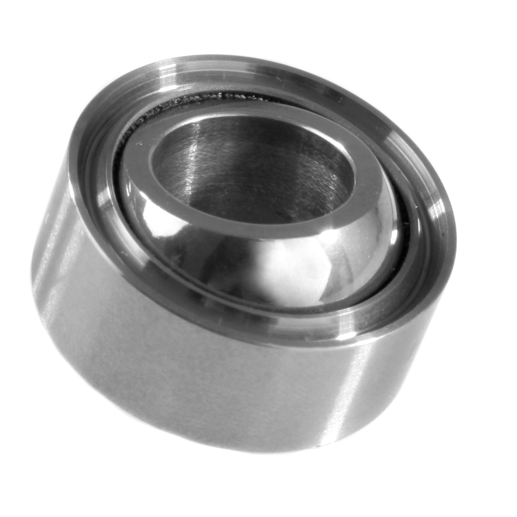

Spherical plain bearings are standalone components with an inner ring and a spherical outer race. They rotate within a housing and allow angular movement.
Use cases:
- Rod ends: pivot joints in linkage arms, control rods, or steering systems
Spherical bearings: mount directly in housings for high-load oscillating joints
What Are They Made Of?
Godiva Bearings supplies components in materials suited for the job:
- Carbon steel – Strong, affordable, suited for dry or lightly greased systems
- Stainless steel – For washdowns, corrosion resistance, or clean environments
- PTFE-lined – Maintenance-free options for long service life
- Zinc-plated or chromed – For wear resistance and surface protection

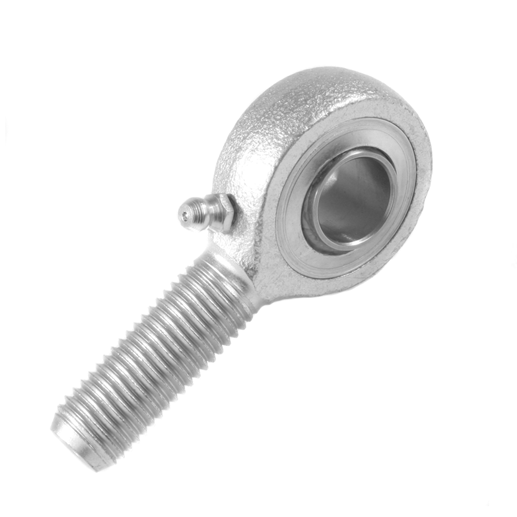

Options available with or without lubrication fittings.
Where Are Rod Ends and Spherical Plain Bearings Used?
Anywhere movement needs to be guided, pivoted, or absorbed under load, you’ll find these:
- Agricultural equipment: Pivot points in sprayers, linkages, and lift arms
- Hydraulic cylinders: Rod end bearings at actuator connections
- Construction machinery: Steering, suspension, and boom pivots
- Rail & transport: Bogie links and stabilising arms
- Industrial automation: Motion guidance in robotic and pick-and-place arms
- Aerospace and defence: Control surface linkages and dampers
- Motorsport and performance vehicles: Suspension and steering joints
- Marine applications: For rudder or tiller linkage where space is tight
Whether rotating, tilting or flexing under force, these bearings absorb the movement.
What Do They Help Prevent?
With the right spec, rod ends and spherical plain bearings help avoid:
- Component cracking due to misalignment
- Excessive wear in rigid joints
- Noise and vibration from mechanical play
- Friction-related failure in moving arms
- Fatigue damage in reciprocating assemblies
They ensure flexible, safe, and reliable mechanical movement.
Installation, Use and Maintenance Tips
To get the most from these joints:
- Align carefully during installation to avoid stress on threads
- Grease regularly unless PTFE-lined
- Avoid overtightening jam nuts – it can deform the housing
- Replace if radial play or corrosion appears
- Choose stainless or sealed types for exposed conditions
Store dry and clean. Don’t leave exposed to workshop dust.
Conclusion: Flexible Joints, Solid Supply
Rod ends and spherical plain bearings do the work that other joints can’t. They’re about movement, misalignment, and heavy-duty flexibility.
Godiva Bearings keeps them in stock, ready to ship — and our team knows the right spec to ask for when your customer doesn’t.
